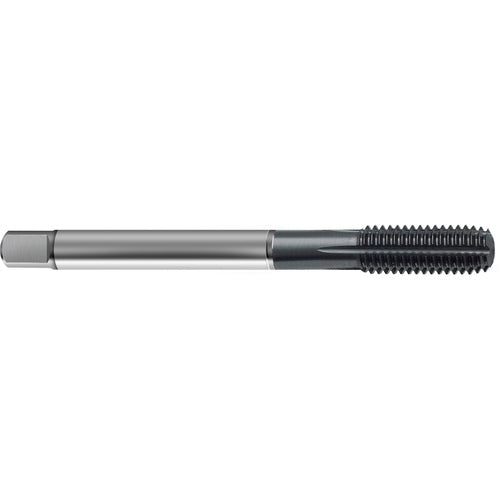

9043770054860 FORM TAP
Item #: GD1443770054860
Brand: Guhring
Model #: 9043770054860
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Thread Standard | UNC |
| Thread Diameter Size (TDZ) | #12 |
| Application | Blind | Through Hole |
| Overall Length (OAL) | 3.15″ |
| Coating | TiCN |
| Usable Length (LU) | 1.024″ |
| Coolant Supply Property (CSP) | without |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Threads per Inch (TPI) | 24 |
| Flute Count (NOF) | 4 |
| Chamfer | 2-3 Form C |
| Drive Size (DRVS) | 0.165″ |
| Series/List # | 4377 |
| Thread Tolerance Class (TCTR) | H6|H7 |
| Thread Size | #12 - 24 |
| Tap Standard | DIN | ANSI |
| Body Material | HSS-E-PM |
