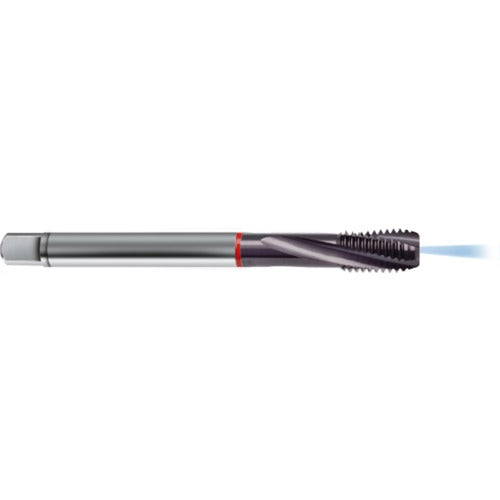

9/16″ - 18 UNF 4-Flute, Series/List # 4376 Spiral Flute Tap
Item #: GD1443760142880
Brand: Guhring
Model #: 9043760142880
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 18 |
| Chamfer | 1.5-2 Form E |
| Thread Standard | UNF |
| Coating | TiCN |
| Overall Length (OAL) | 3.937″ |
| Coolant Supply Property (CSP) | axial |
| Connection Diameter Machine Side (DCONMS) | 10.8966″ |
| Series/List # | 4376 |
| Flute Count (NOF) | 4 |
