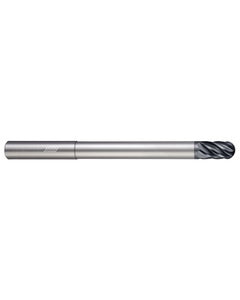

82636 6 FL 1/4 EM APLUS
Item #: HS1082636
Brand: Helical Solutions
Model #: 82636
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Corner Radius (RE) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Neck Diameter (DN) | 0.237″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Neck Length (LN) | 1.75″ |
| Overall Length (OAL) | 4″ |
| End Shape | Ball |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | APLUS |
| Measurement Type | Inch |
| Flute Count (NOF) | 6 |
| Center Cutting | Yes |
| Applicable Material | | Steel | |
