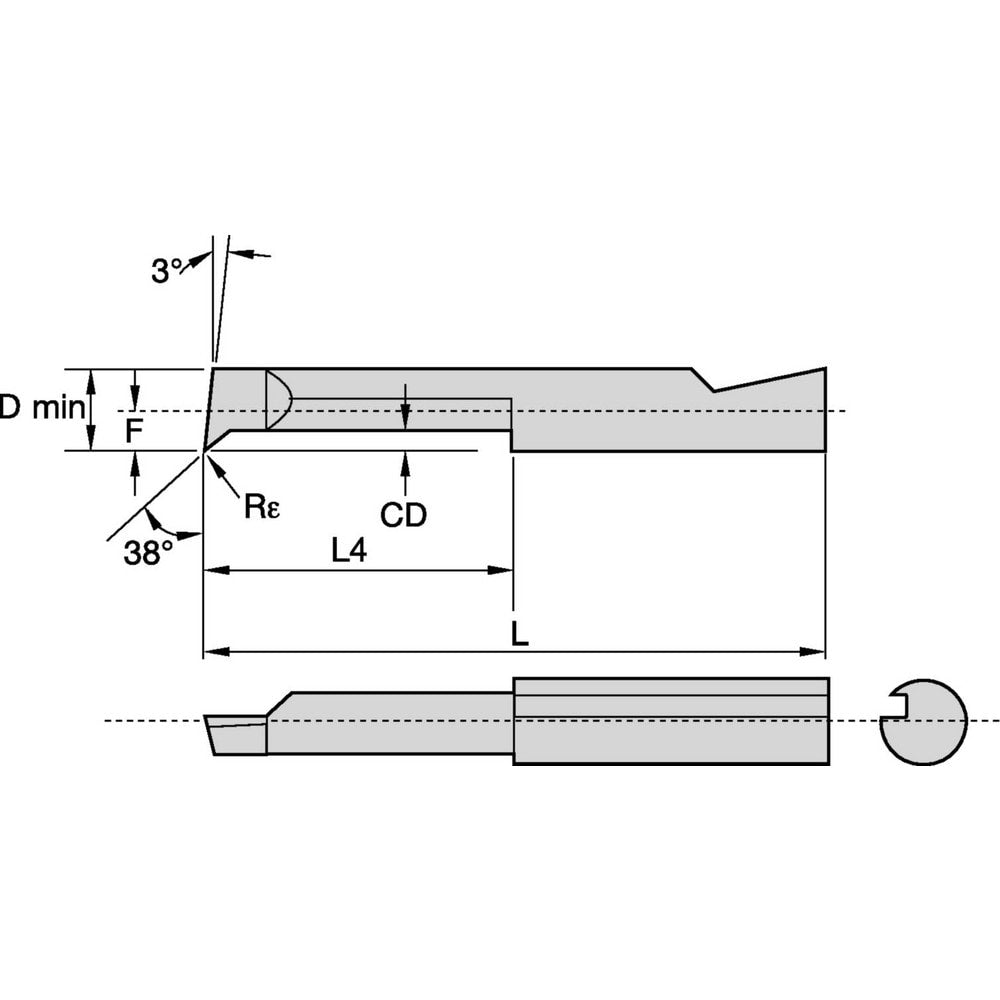

Brand: Widia / Part #: 2836511
Item #: 97595292
Brand: Widia
Model #: 2836511
Product Specifications
| Boring Bar Type | Micro Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0620 |
| Material | Solid Carbide |
| Material Grade | Submicron |
| Maximum Bore Depth (Decimal Inch) | 0.1870 |
| Shank Diameter (Decimal Inch) | 5/32 |
| Finish Coating | Titanium Nitride |
| Manufacturer Grade | CG5 |
| Series | APD |
| Coating Process | CVD |
| Maximum Depth of Cut (mm) | 0.02 |
| Overall Length (Decimal Inch) | 0.8370 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Relief Angle | -3.000 |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
