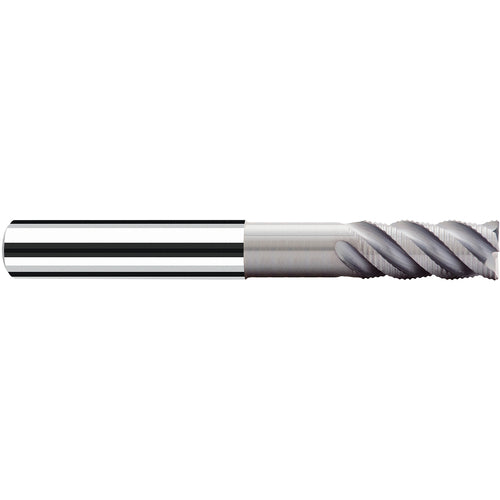

P5974530 NX-FP 1/2″ 4 FLU
Item #: FR10P5974530
Brand: Fraisa USA Inc
Model #: P5974530
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Usable Length (LU) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Chamfer Width (CHW) | 0.01″ |
| Overall Length (OAL) | 4-1/2″ |
| Neck Diameter (DN) | 0.459″ |
| Cutting Edge Material | Carbide |
| Tool Type | Square Endmill |
| Coating | Polychrom |
| Length Group | Long |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.5″ |
| Shank Type | Weldon |
| Measurement Type | Inch |
| End Shape | Square |
| Series/List # | NX-FP |
