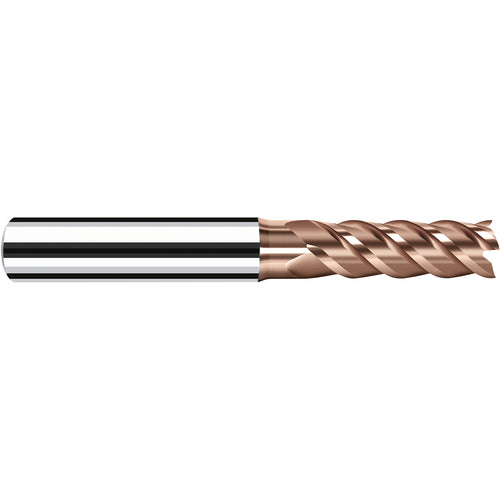

H98614530 HX-NVS 1/2″ 4 F
Item #: FR10H98614530
Brand: Fraisa USA Inc
Model #: H98614530
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Steel | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Neck Diameter (DN) | 0.46″ |
| Overall Length (OAL) | 3-3/4″ |
| Tool Type | Square Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Standard |
| Coating | Polychrom |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Series/List # | HX-NVS |
| End Shape | Corner Radius |
