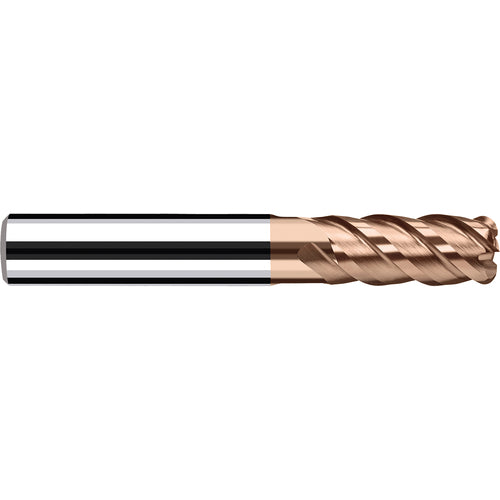

H98507534 HX-RNVS 1/2″ 4
Item #: FR10H98507534
Brand: Fraisa USA Inc
Model #: H98507534
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Usable Length (LU) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Applicable Material | Steel | Hard Materials |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Corner Radius (RE) | 0.008″ |
| Overall Length (OAL) | 3-1/4″ |
| Neck Diameter (DN) | 0.46″ |
| Cutting Edge Material | Carbide |
| Tool Type | Square Endmill |
| Coating | Duro-Si |
| Length Group | Long length with short neck |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.5″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Series/List # | HX-RNVS |
