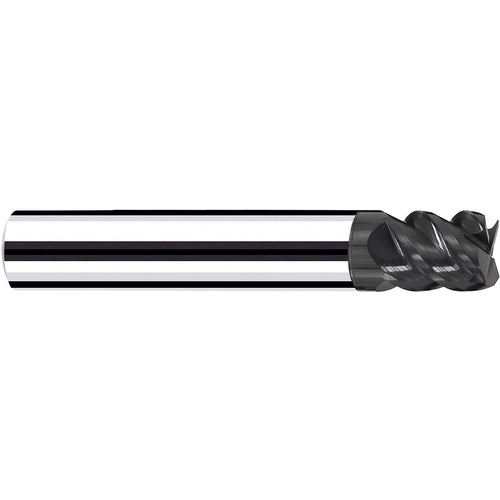

D5949605 HX 5/8″ 4 FLUTES
Item #: FR10D5949605
Brand: Fraisa USA Inc
Model #: D5949605
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Corner Chamfer Width (CHW) | 0.006″ |
| Overall Length (OAL) | 3-1/2″ |
| Tool Type | Square Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Stub |
| Coating | Duro-S |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Weldon |
| Series/List # | HX |
