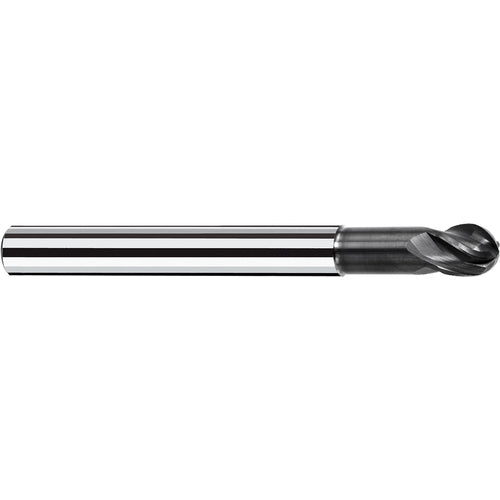

D15840530 HX-S4 1/2″ 4 FL
Item #: FR10D15840530
Brand: Fraisa USA Inc
Model #: D15840530
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0.0625″ |
| Depth of Cut Maximum (APMX) | 1/8″ |
| Neck Diameter (DN) | 0.46″ |
| Overall Length (OAL) | 6″ |
| Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Standard |
| Coating | Duro-S |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Round |
| Series/List # | HX-S4 |
| Usable Length (LU) | 3/8″ |
