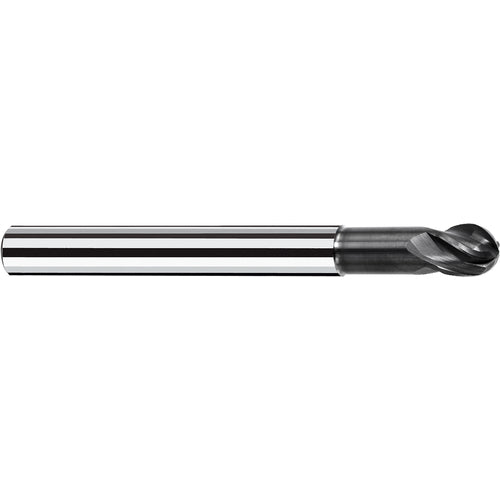

D15840432 HX-S4 3/8″ 4 FL
Item #: FR10D15840432
Brand: Fraisa USA Inc
Model #: D15840432
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Applicable Material | Steel | Cast Iron | Hard Materials |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Corner Radius (RE) | 0.0937″ |
| Depth of Cut Maximum (APMX) | 3/16″ |
| Neck Diameter (DN) | 0.345″ |
| Overall Length (OAL) | 6″ |
| Tool Type | Ballnose Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Standard |
| Coating | Duro-S |
| Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Round |
| Series/List # | HX-S4 |
| Usable Length (LU) | 9/16″ |
