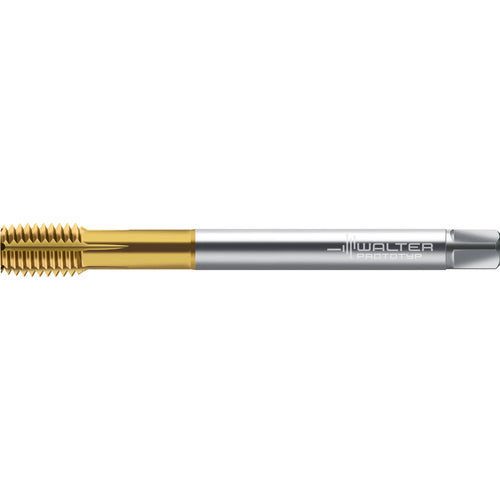

MF18x1.5 Metric 6HX 6 Flute HSS-E TIN Thread Forming Tap
Item #: FK108187472
Brand: Walter-Prototyp
Model #: 8187472
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TIN |
| Thread Diameter Size (TDZ) | M18 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Pitch (TP) | 1.5 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 110 mm |
| Cutting Edge Material | HSSE |
| Usable Length (LU) | 66 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Series/List # | TC440 |
| Flute Count (NOF) | 6 |
| Grade | WY80AD |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Size | M18 × 1.5 |
| Thread Standard | Metric |
| Body Material | HSS-E |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
