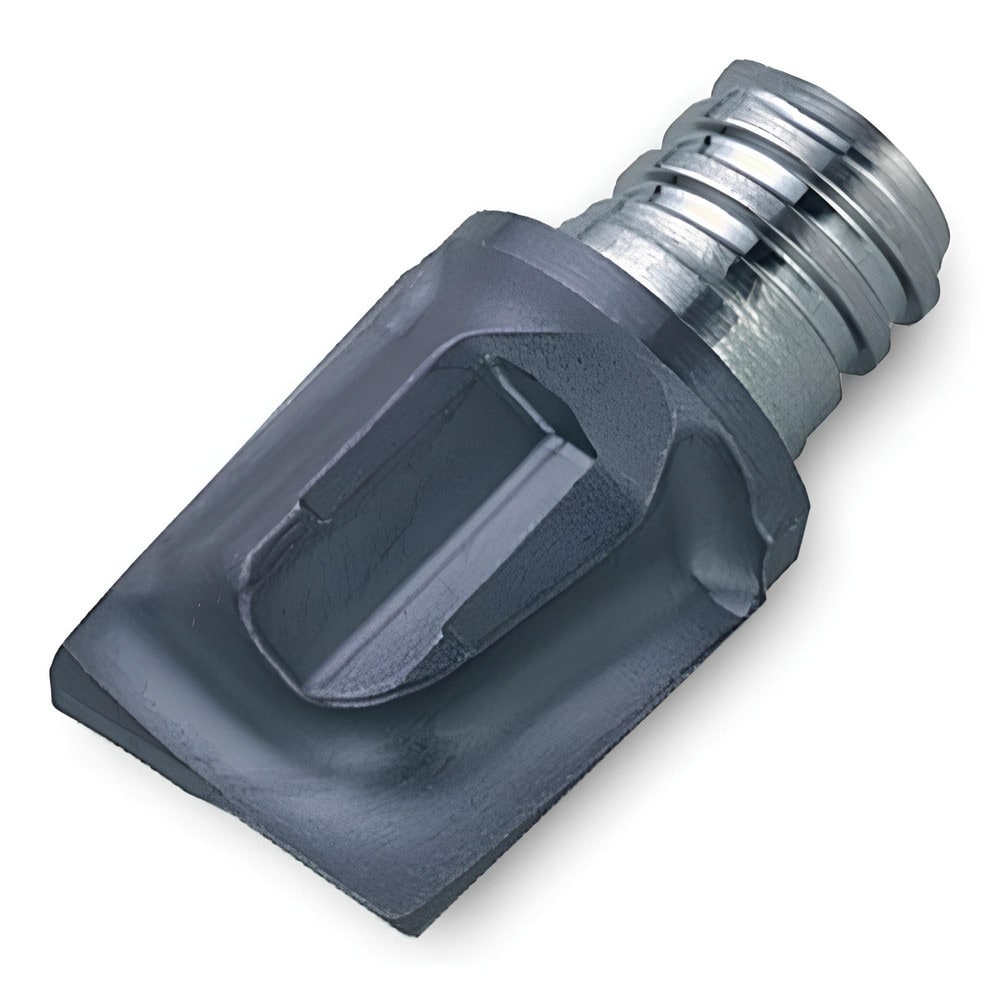

Brand: Ingersoll Cutting Tools / Part #: 5873233
Item #: 94519311
Brand: Ingersoll Cutting Tools
Model #: 5873233
Product Specifications
| Milling Tip Type | Drill |
| Milling Tip Style | 45D |
| Maximum Depth of Cut (mm) | 9.90 |
| Cutting Diameter (mm) | 12.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 9.90 |
| Manufacturer Grade | IN2006 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 45D |
| Coating Process | PVD |
| Corner Radius (mm) | 50.80 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Thread Size | T08 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 45D12010T8RA20 |
| Length of Cut (mm) | 14.2000 |
| Helix Angle | 10 |
| Coolant Through | No |
| Overall Length (mm) | 14.2000 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
