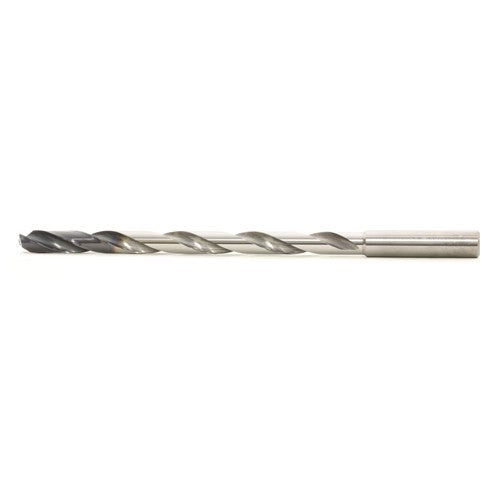

MDW095XHV12 9.5 mm Dia. × 10 mm Shank × 141 mm Flute Length × 195 mm OAL, DEX, External Coolant, Cylindrical Solid Carbide Drill
Item #: FJ06U101239
Brand: Sumitomo
Model #: U101239
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9.5 mm |
| Shape | Solid Carbide |
| Decimal Equivalent | 0.374″ |
| Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.5 mm |
| Tool Type | Solid Carbide |
| Length Group | 12xD |
| Point Shape | 140 Degrees |
| Coating | DEX |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Usable Length (LU) | 138 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 141 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 195 mm |
