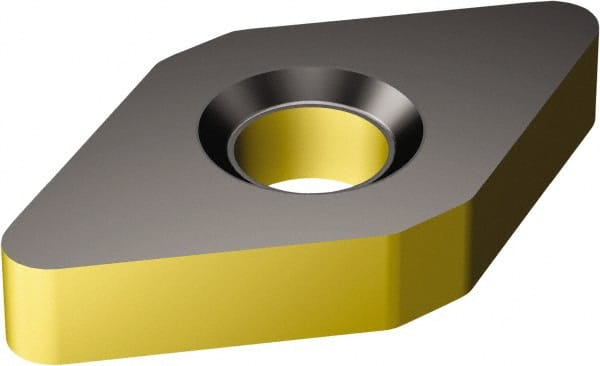

Sandvik Coromant - DNMA432 3205 Grade Carbide Turning Insert
Item #: 52082062
Brand: Sandvik Coromant
Model #: 5731726
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 14.70 |
| Length (Decimal Inch) | 0.5789 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 3205 |
| Coating | TiCN/AI2O3/TiN |
| Insert Length (Decimal Inch) | 0.5789 |
| OverallLength (mm) | 15.50 |
| Overall Length (Decimal Inch) | 0.6104 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | DNMA 15 04 08-KR 3205 |
| Material | Carbide |
| Overall Length (Decimal Inch) | 0.6104 |
| Overall Length (mm) | 15.50 |
| Corner Radius (Decimal Inch) | 1/32 |
| Coating | TiCN/AI2O3/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Material | Carbide |
| Manufacturer's Grade | 3205 |
| Insert Style | DNMA |
| Insert Size | 432 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Shape | Diamond |
| Corner Radius (Decimal Inch) | 0.0313 |
| Coating | TiCN/AI2O3/TiN |
| Thickness (Decimal Inch) | 0.1875 |
| Material | Carbide |
| Manufacturer's Grade | 3205 |
| Insert Style | DNMA |
| Length (Decimal Inch) | 0.5789 |
| Insert Size | 432 |
| Shape | Diamond |
