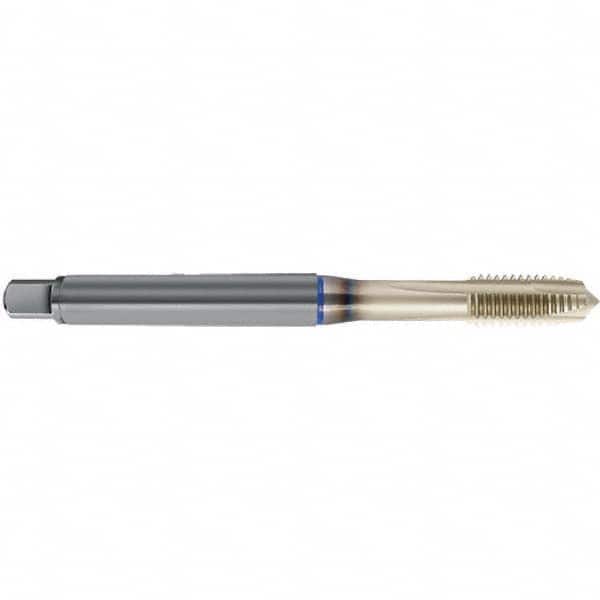

Guhring - Spiral Point Taps Thread Size (mm): M20x2.50 Number of Flutes: 4
Item #: 12269478
Brand: Guhring
Model #: 9046460200000
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered metal high speed steel is durable and wear resistant material used in general purpose applications. It is commonly used on low-carbon alloys and mild steels.
Product Specifications
Spiral Point Taps; Thread Size (mm): M20x2.50 ; Number of Flutes: 4 ; Chamfer: Plug ; Class of Fit: 6HX ; Thread Limit: D9/D10 ; Finish/Coating: Sirius
| Thread Size (mm) | M20x2.50 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Thread Limit | D9/D10 |
| Finish/Coating | Sirius |
| Material | Powdered Metal High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (mm) | 140.00 |
| Oversize | No |
| Thread Standard | Metric |
| Series/List | 4646 |
| Shank Diameter (mm) | 16.00 |
| Square Size (mm) | 12.00 |
