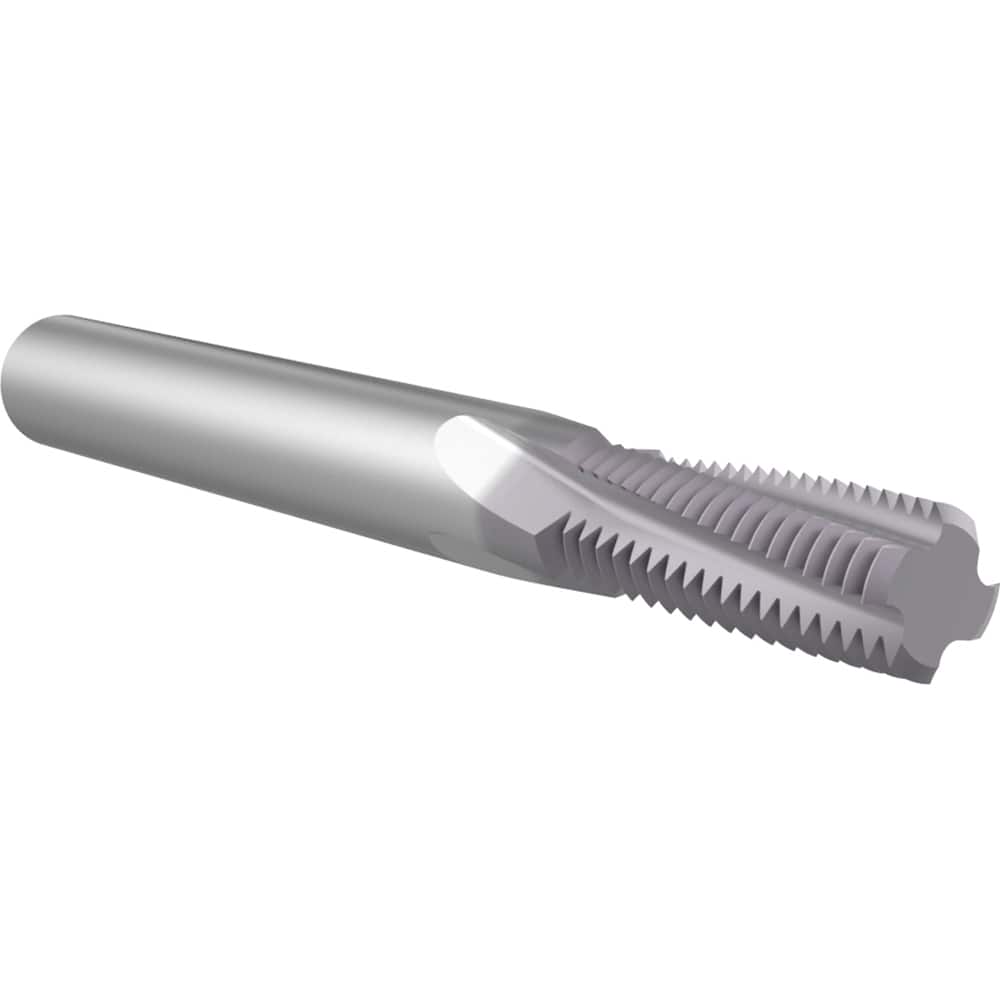

Allied Machine and Engineering - Helical Flute Thread Mills Pitch (mm): 0.75 Material: Carbide
Item #: 18419911
Brand: Allied Machine and Engineering
Model #: TM10075
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Pitch (mm): 0.75 ; Material: Carbide ; Thread Size (mm): M10 ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.3120 ; Number of Flutes: 4
| Pitch (mm) | 0.75 |
| Material | Carbide |
| Thread Size (mm) | M10 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3100 |
| Length of Cut (Decimal Inch) | 0.5910 |
| Finish/Coating | TiAlN |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 3 |
| Thread Standard | ISO |
