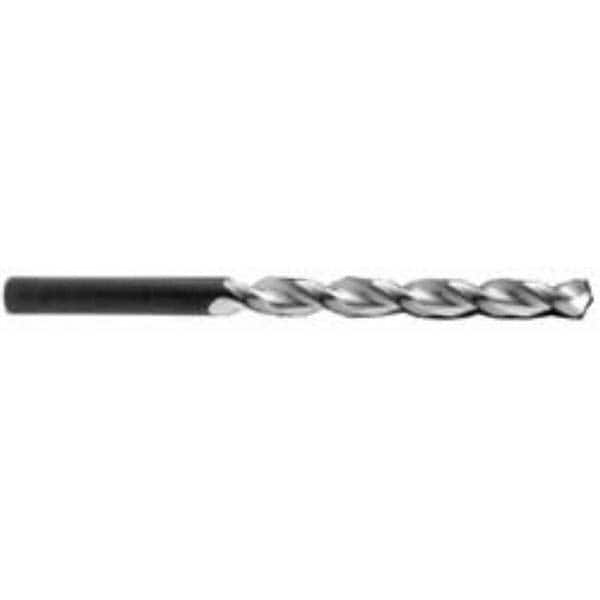

Guhring - 25/64" 130° Parabolic Flute High Speed Steel Taper Length Drill Bit
Item #: 85824258
Brand: Guhring
Model #: 9006680099200
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 25/64 |
| Drill Bit Size (Decimal Inch) | 0.3906 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | No |
| Point Type | Standard |
| Flute Length (Inch) | 4-3/4 |
| Overall Length (Inch) | 7-1/4 |
| Spiral Type | Regular Spiral |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.022 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 340 |
| Series/List | 668 |
