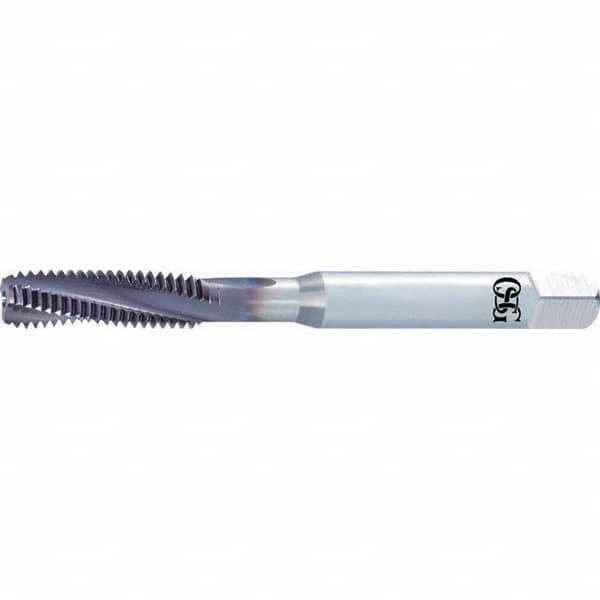

OSG - Spiral Flute Taps Thread Size (mm): M10x1.50 Chamfer: 1.5-2 P
Item #: 94911823
Brand: OSG
Model #: 1660000600
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Spiral Flute Taps; Thread Size (mm): M10x1.50 ; Chamfer: 1.5-2 P ; Class of Fit: NORMAL ; Thread Limit: D6 ; Number of Flutes: 3 ; Material: Carbide
| Thread Size (mm) | M10x1.50 |
| Chamfer | 1.5-2 P |
| Class of Fit | NORMAL |
| Thread Limit | D6 |
| Number of Flutes | 3 |
| Material | Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 100.00 |
| Helix Angle | 15 |
| Thread Length (mm) | 18.00 |
| Tapping Depth (mm) | 39.00 |
| Shank Diameter (mm) | 9.67 |
