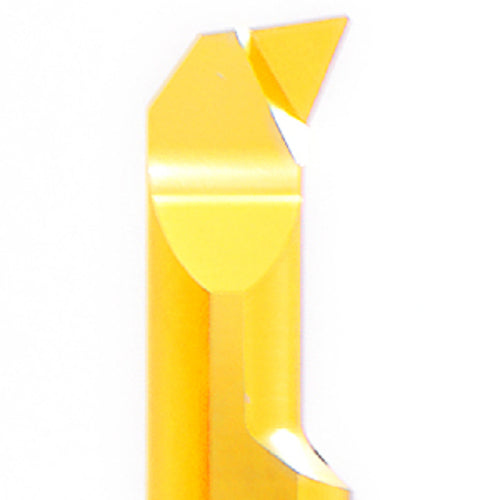

MPL 8 R0.2 L15 BXC
Item #: FF6270600006
Brand: Carmex
Model #: 70600006
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Depth Maximum (CDX) | 1.52 mm |
| Minimum Bore Diameter (DMIN) | 8.13 mm |
| Usable Length (LU) | 14.99 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Diameter (DC) | 3.81 mm |
| Coating | TiN |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | PROFILING & BORING |
| Grade | BXC |
| Measurement Type | Metric |
| Applicable Material | Stainless Steel |
| Size | H8 |
| Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 63.5 mm |
