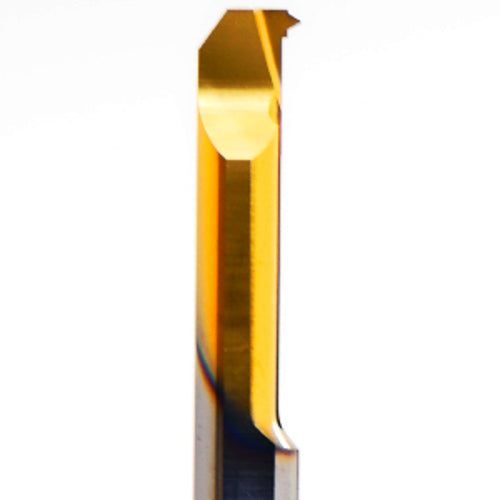

MIL 6 L22 1.25 ISO BXC
Item #: FF5870400168
Brand: Carmex
Model #: 70400168
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 01.25mm |
| Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Edge Material | Carbide |
| Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees |
| Size | H6 |
| Applicable Material | Stainless Steel |
| Cutting Length | 22.1 mm |
| Coating | TiN |
| Thread Size | M7 × 1.25 |
| Measurement Type | Metric |
| Internal/External | Internal |
