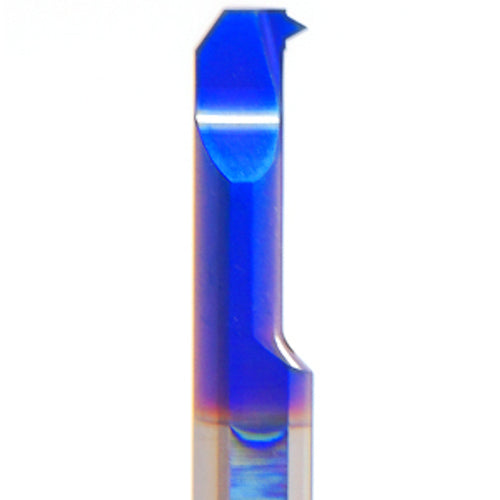

MIL 6 L15 A55 BMK
Item #: FF5870400159
Brand: Carmex
Model #: 70400159
| Product Specifications | |
|---|---|
| Threads per Inch Minimum (TPIN) | 16 |
| Measurement Type | Metric |
| Threads per Inch Maximum (TPIX) | 48 |
| Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Edge Material | Carbide |
| Grade | BMK |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 55 Degrees |
| Size | H6 |
| Applicable Material | General Purpose |
| Cutting Length | 14.99 mm |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Internal/External | Internal |
