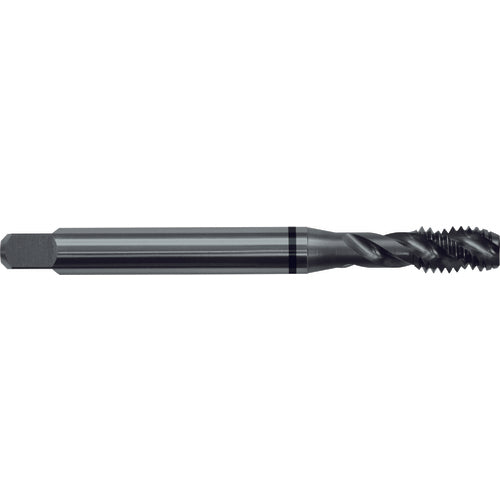

M6x1.0 D5 3 Flute Spiral Flute Semi-Bottoming Black Ring Tap-Steam Oxide
Item #: ER80BLK4006010
Brand: Rapidkut
Model #: ER80BLK4006010
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Cutting Edge Material | High Vanadium Steel |
| Thread Pitch (TP) | 1 mm |
| Thread Tolerance Class (TCTR) | D5 |
| Thread Standard | Metric |
| Special Feature | Black Ring |
| Overall Length (OAL) | 3.15″ |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 0.433″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| End Shape | Spiral Flute |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Cutting Length | 0.433″ |
| Coolant Supply Property (CSP) | External |
| Applicable Material | General Purpose |
| Measurement Type | Metric |
