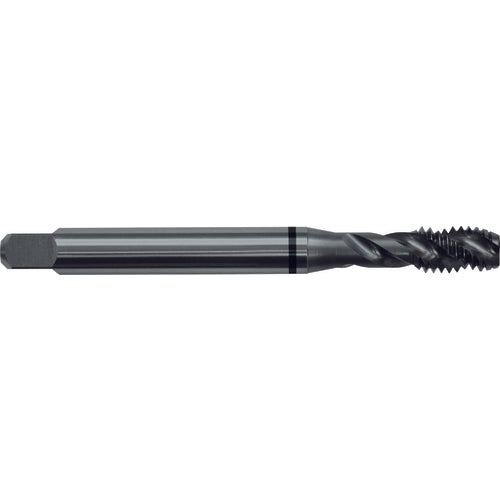

M3.5x0.6 D4 3 Flute Spiral Flute Semi-Bottoming Black Ring Tap-Steam Oxide
Item #: ER80BLK4003560
Brand: Rapidkut
Model #: ER80BLK4003560
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M3.5 |
| Cutting Edge Material | High Vanadium Steel |
| Thread Pitch (TP) | 0.6 mm |
| Thread Tolerance Class (TCTR) | D4 |
| Thread Standard | Metric |
| Special Feature | Black Ring |
| Overall Length (OAL) | 2.21″ |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 0.276″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| End Shape | Spiral Flute |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Cutting Length | 0.276″ |
| Coolant Supply Property (CSP) | External |
| Applicable Material | General Purpose |
| Measurement Type | Metric |
