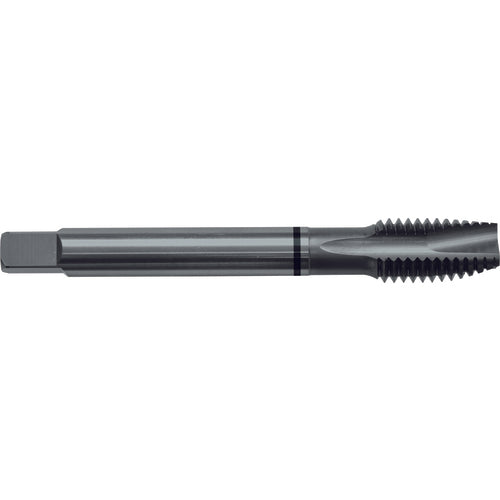

M3.5x0.6 D4 3 Flute Spiral Pointed Plug Black Ring Tap-Steam Oxide
Item #: ER80BLK3003560
Brand: Rapidkut
Model #: ER80BLK3003560
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Flute Count (NOF) | 3 |
| Thread Size | M3.5 × 0.6 |
| Cutting Edge Material | High Vanadium Steel |
| Thread Diameter Size (TDZ) | M3.5 |
| Special Feature | Black Ring |
| Thread Pitch (TP) | 0.6 mm |
| Applicable Material | General Purpose |
| Thread Tolerance Class (TCTR) | D4 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Usable Length (LU) | 0.413″ |
| Thread Cutting Part Length (THL) | 0.413″ |
| Overall Length (OAL) | 2.21″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Coolant Supply Property (CSP) | No |
| Coating | Steam Oxide |
| Measurement Type | Metric |
