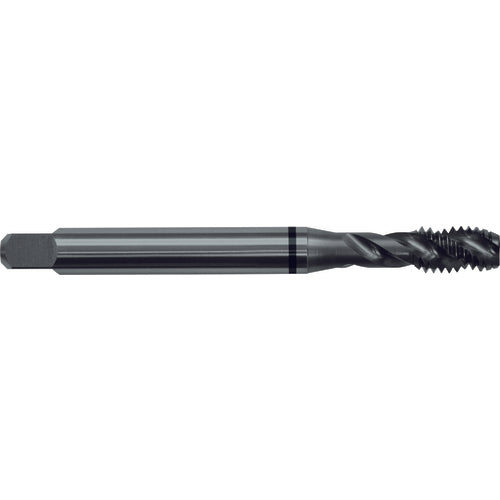

5/16-18 H5 3 Flute Spiral Flute Semi-Bottoming Black Ring Tap-Steam Oxide
Item #: ER80BLK2002018
Brand: Rapidkut
Model #: ER80BLK2002018
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/16″ |
| Cutting Edge Material | High Vanadium Steel |
| Threads per Inch (TPI) | 18 |
| Thread Tolerance Class (TCTR) | H5 |
| Thread Standard | NC |
| Special Feature | Black Ring |
| Overall Length (OAL) | 3.54″ |
| Coating | Steam Oxide |
| Thread Cutting Part Length (THL) | 0.472″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| End Shape | Spiral Flute |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Cutting Length | 0.472″ |
| Coolant Supply Property (CSP) | External |
| Applicable Material | General Purpose |
| Measurement Type | Fractional |
