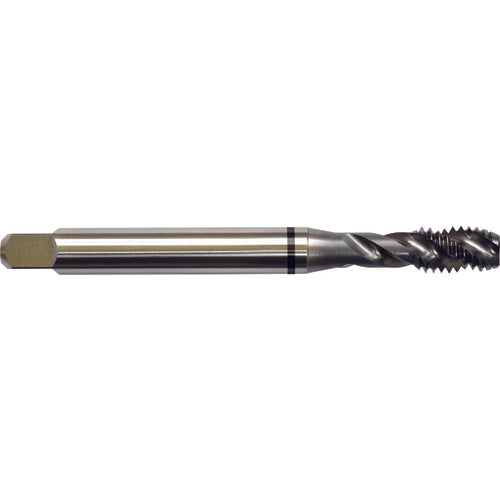

10-32 H3 3 Flute Spiral Flute Semi-Bottoming Black Ring Tap-TICN
Item #: ER80BLK2001032T
Brand: Rapidkut
Model #: ER80BLK2001032T
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #10 |
| Cutting Edge Material | High Vanadium Steel |
| Threads per Inch (TPI) | 32 |
| Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | NF |
| Special Feature | Black Ring |
| Overall Length (OAL) | 2.76″ |
| Coating | TICN |
| Thread Cutting Part Length (THL) | 0.276″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.194″ |
| End Shape | Spiral Flute |
| Flute Count (NOF) | 3 |
| Style | Semi-Bottoming |
| Cutting Length | 0.276″ |
| Coolant Supply Property (CSP) | External |
| Applicable Material | General Purpose |
| Measurement Type | Machine Screw |
