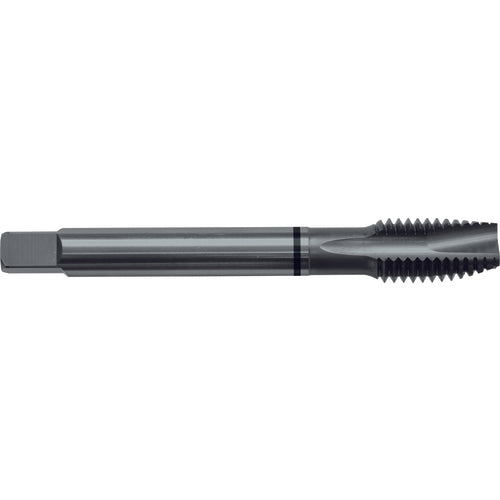

1/4-28 H4 3 Flute Spiral Pointed Plug Black Ring Tap-Steam Oxide
Item #: ER80BLK1001628
Brand: Rapidkut
Model #: ER80BLK1001628
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Flute Count (NOF) | 3 |
| Thread Size | 1/4″ - 28 |
| Cutting Edge Material | High Vanadium Steel |
| Thread Diameter Size (TDZ) | 1/4″ |
| Special Feature | Black Ring |
| Threads per Inch (TPI) | 28 |
| Applicable Material | General Purpose |
| Thread Tolerance Class (TCTR) | H4 |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Usable Length (LU) | 0.591″ |
| Thread Cutting Part Length (THL) | 0.591″ |
| Overall Length (OAL) | 3.15″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Coolant Supply Property (CSP) | No |
| Coating | Steam Oxide |
| Measurement Type | Fractional |
