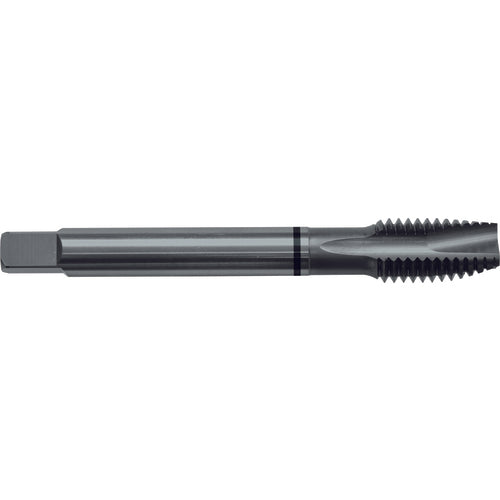

4-40 H2 2 Flute Spiral Pointed Plug Black Ring Tap-Steam Oxide
Item #: ER80BLK1000440
Brand: Rapidkut
Model #: ER80BLK1000440
| Product Specifications | |
|---|---|
| Thread Standard | NC |
| Flute Count (NOF) | 2 |
| Thread Size | #4 - 40 |
| Cutting Edge Material | High Vanadium Steel |
| Thread Diameter Size (TDZ) | #4 |
| Special Feature | Black Ring |
| Threads per Inch (TPI) | 40 |
| Applicable Material | General Purpose |
| Thread Tolerance Class (TCTR) | H2 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Usable Length (LU) | 0.335″ |
| Thread Cutting Part Length (THL) | 0.335″ |
| Overall Length (OAL) | 2.21″ |
| End Shape | Spiral Point |
| Chamfer | Plug |
| Coolant Supply Property (CSP) | No |
| Coating | Steam Oxide |
| Measurement Type | Machine Screw |
