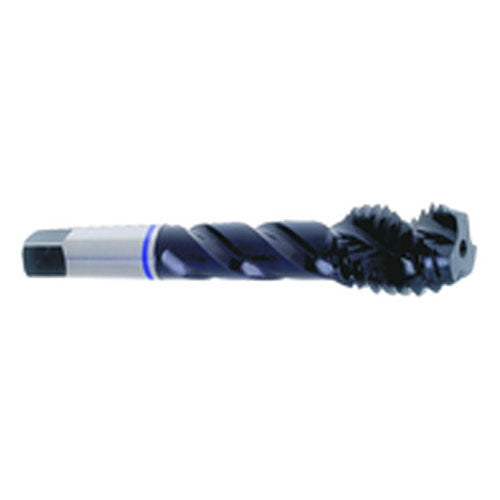

4-40 Dia-H2-2 FL-Std Spiral FL Tap-Blue Ring
Item #: ER80B2000440
Brand: Rapidkut
Model #: ER80B2000440
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #4 |
| Thread Tolerance Class (TCTR) | H2 |
| Threads per Inch (TPI) | 40 |
| Special Feature | General Purpose - Blue Band |
| Thread Standard | NC |
| Tool Type | High Performance Tap |
| Overall Length (OAL) | 1-7/8″ |
| Coating | 2% Vanadium |
| Thread Cutting Part Length (THL) | 0.313″ |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Style | Semi-Bottoming |
| Flute Count (NOF) | 2 |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS |
| Measurement Type | Machine Screw |
