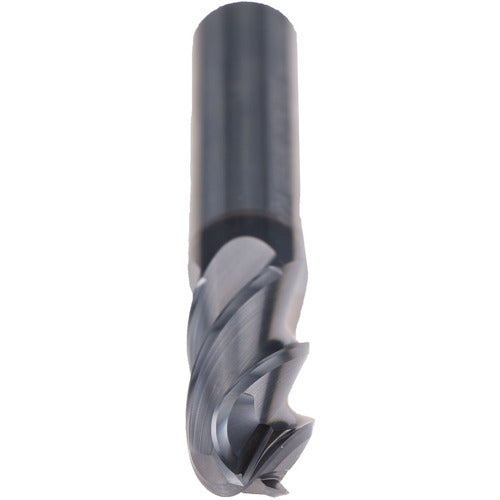

7/16 EM TOPCUT VAR-BN-4FL
Item #: ER472974L04375
Brand: EMUGE-FRANKEN
Model #: 2974L.04375
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/16″ |
| Tool Type | Top-CUT VAR |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Length Group | Standard |
| Overall Length (OAL) | 2-3/4″ |
| End Shape | Ball Nose |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | External |
| Coating | AlCr |
| Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 35 Degrees |
| Series/List # | 2974L |
| Shank Type | HA |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1″ |
