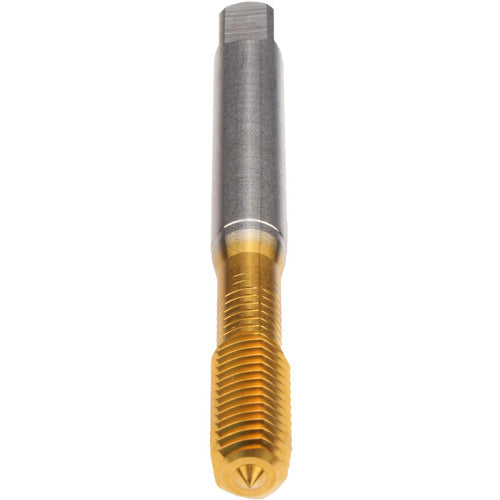

LK 1/4-20 SELFLOCK/RLFORM
Item #: ER45U93F3005662
Brand: EMUGE-FRANKEN
Model #: BU93F300.5662
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ |
| Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 3.15″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Measurement Type | Inch |
| Thread Tolerance Class (TCTR) | BT |
| Cutting Edge Material | HSSE |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC |
| Series/List # | U93F300 |
| Applicable Material | Universal Materials |
| Thread Size | 1/4″ - 20 |
| Coating | TiN |
