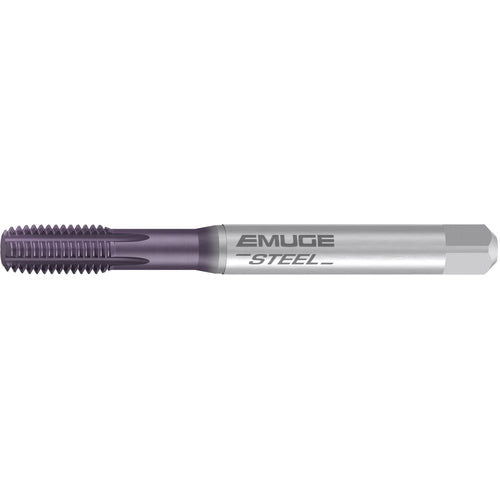

STI 6-32-TAP-DRUCK RLFORM
Item #: ER45U9290105613
Brand: EMUGE-FRANKEN
Model #: BU929010.5613
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | 2P-3P |
| Style | Bottoming |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | #6 |
| Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3BX |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC |
| Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Overall Length (OAL) | 2.205″ |
| Standard | DIN | ANSI |
| Cutting Edge Material | HSSE |
| Series/List # | U929010 |
| Applicable Material | Universal Materials |
| Thread Size | #6 - 32 |
