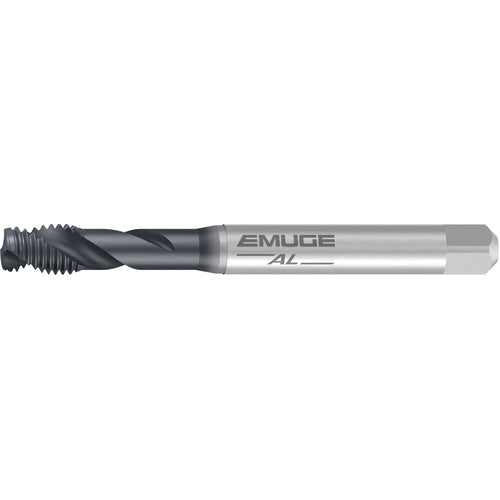

STI 1/4-20-TAP-ENORM-AL
Item #: ER45U51S8105617
Brand: EMUGE-FRANKEN
Model #: BU51S810.5617
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | GLT-8 |
| Style | Bottoming |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | UNC |
| Flute Type | Spiral |
| Threads per Inch (TPI) | 20 |
| Usable Length (LU) | 35 mm |
| Overall Length (OAL) | 3.543″ |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Flute Count (NOF) | 2 |
| Standard | DIN | ANSI |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Series/List # | U51S810 |
| Chamfer | 1.5P-2P |
| Thread Size | 1/4″ - 20 |
