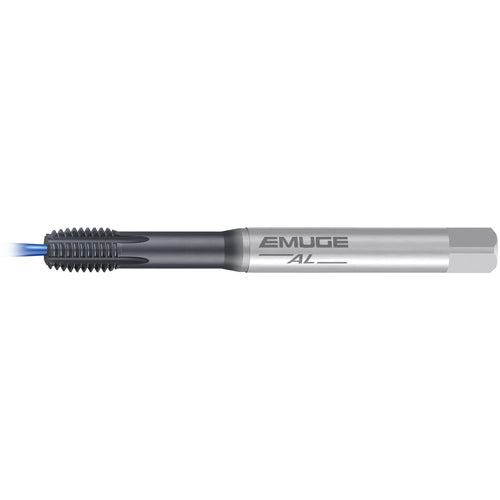

CU44Y700.5016 TAP
Item #: ER45U44Y7005016
Brand: EMUGE-FRANKEN
Model #: CU44Y700.5016
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Coating | GLT-8 |
| Thread Diameter Size (TDZ) | 3/4″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4.921″ |
| Threads per Inch (TPI) | 10 |
| Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNC |
| Thread Size | 3/4″ - 10 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
