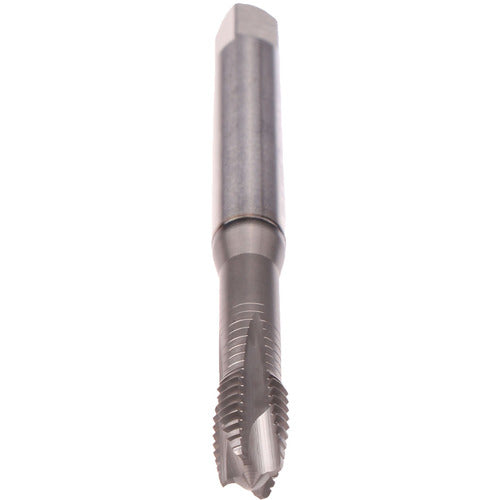

LK 8-36 SELF-LK/PL/GLT1
Item #: ER45U20A6005710
Brand: EMUGE-FRANKEN
Model #: BU20A600.5710
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Tool Type | Rekord B-Z |
| Thread Size | #8 - 36 |
| Applicable Material | Steel | Cast Iron |
| Thread Diameter Size (TDZ) | #8 |
| Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Threads per Inch (TPI) | 36 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Thread Tolerance Class (TCTR) | BT |
| Style | Spiral Point |
| Overall Length (OAL) | 2.48″ |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P |
| Coolant Supply Property (CSP) | External |
| Coating | GLT-1 |
| Series/List # | U20A600 |
| Cutting Edge Material | HSS-E PM |
