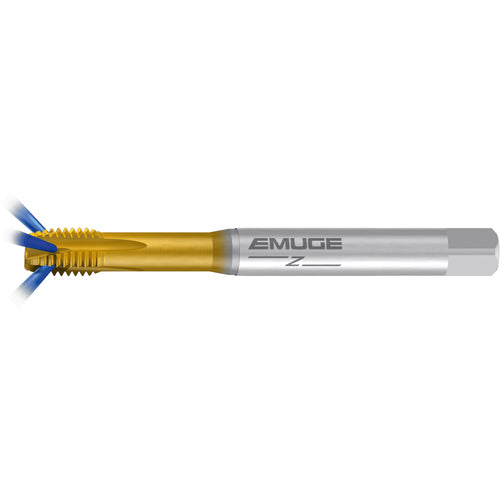

CU088F01.5015 REKORD B
Item #: ER45U088F015015
Brand: EMUGE-FRANKEN
Model #: CU088F01.5015
| Product Specifications | |
|---|---|
| Thread Standard | UNC |
| Standard | DIN | ANSI |
| Thread Size | 5/8″ - 11 |
| Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | 5/8″ |
| Applicable Material | Steel | Cast Iron |
| Threads per Inch (TPI) | 11 |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 4.331″ |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSS-E PM |
| Series/List # | 088F01 |
