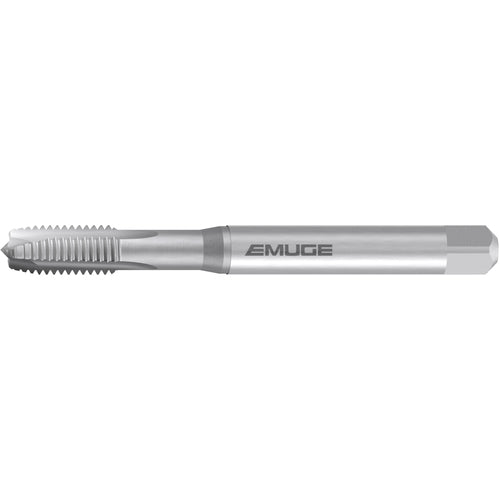

CU2065115046 7/16-20 UNF-2B
Item #: ER45CU2335046
Brand: EMUGE-FRANKEN
Model #: CU206511.5046
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Standard | DIN | ANSI |
| Thread Size | 7/16″ - 20 |
| Tool Type | Rekord B-Aero |
| Thread Diameter Size (TDZ) | 7/16″ |
| Applicable Material | Super-Alloys / Titanium |
| Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 3.937″ |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | Nitride |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Series/List # | U206511 |
| Cutting Edge Material | HSS-E |
