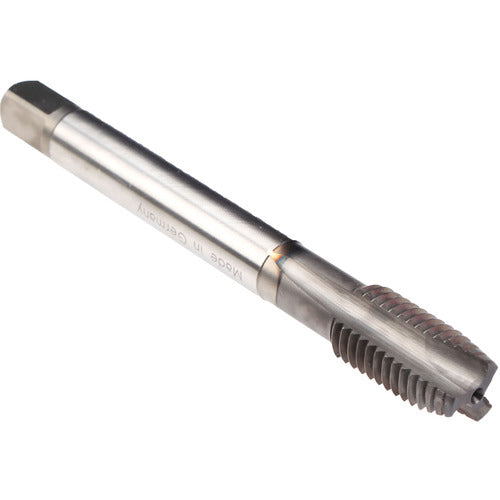

1/2-13 UNC 3B TIN TAP
Item #: ER45CU20C310501
Brand: EMUGE-FRANKEN
Model #: CU20C310.5013
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1/2″ |
| Thread Tolerance Class (TCTR) | 3B |
| Threads per Inch (TPI) | 13 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Rekord B-VA |
| Overall Length (OAL) | 4.331″ |
| Chamfer | 4P-5P |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Coating | GLT-1 |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
