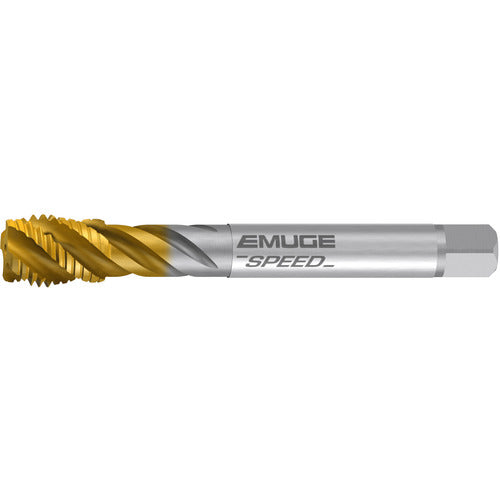

M12X1.25-ENORM Z-SPD-TIN
Item #: ER45C360F010302
Brand: EMUGE-FRANKEN
Model #: C3600F01.0302
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M12 |
| Standard | DIN |
| Thread Pitch (TP) | 1.25 mm |
| Tool Type | Enorm - Speed |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm |
| Coating | TiN-60 |
| Connection Diameter Machine Side (DCONMS) | 9 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Universal Materials |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E PM |
| ToolTypeName | Spiral Flute Taps |
| Thread Tolerance Class (TCTR) | 6HX |
