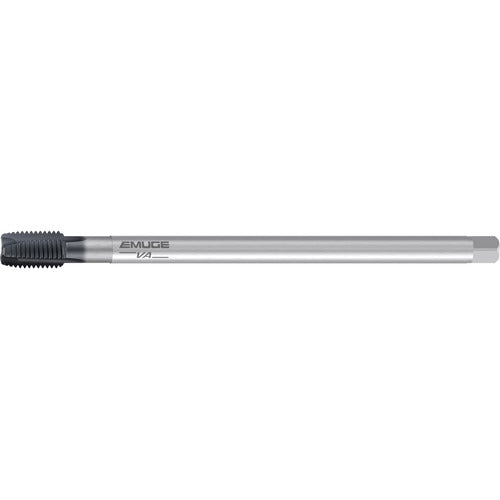

M16-REK B-VA-LG SHK-GLT1
Item #: ER45C220C300116
Brand: EMUGE-FRANKEN
Model #: C220C300.0116
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M16 |
| Thread Tolerance Class (TCTR) | 6H |
| Thread Pitch (TP) | 2 mm |
| Tool Type | Rekord B-VA |
| Thread Standard | Metric |
| Standard | DIN |
| Overall Length (OAL) | 224 mm |
| Chamfer | 4P-5P |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Coating | GLT-1 |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Flute Type | Spiral |
