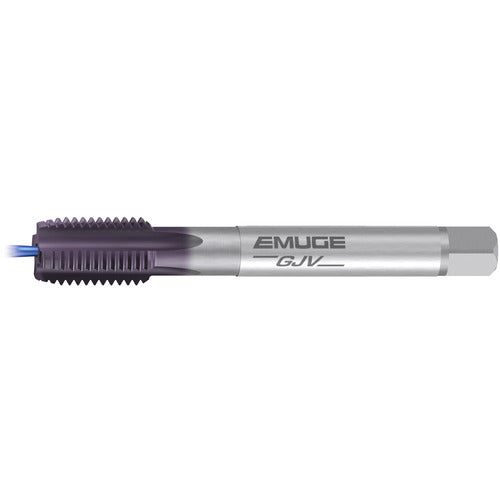

M16-6Hx Rek.2A-Gjv-Ikz
Item #: ER45C195R51116
Brand: EMUGE-FRANKEN
Model #: C195R501.0116
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M16 × 2 |
| Tool Type | Rekord A-GJV |
| Thread Diameter Size (TDZ) | M16 |
| Applicable Material | Cast Iron |
| Thread Pitch (TP) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Thread Tolerance Class (TCTR) | 6HX |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 110 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiCN |
| Series/List # | 195R501 |
| Cutting Edge Material | HSS-E PM |
