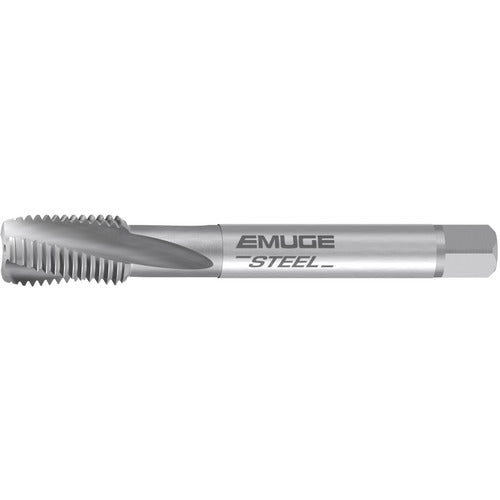

M22X1-REK D TAP
Item #: ER45C0451000436
Brand: EMUGE-FRANKEN
Model #: C0451000.0436
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M22 |
| Standard | DIN |
| Thread Pitch (TP) | 1 mm |
| Tool Type | Rekord D |
| Thread Standard | Metric |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 125 mm |
| Coating | Bright |
| Connection Diameter Machine Side (DCONMS) | 18 mm |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| ToolTypeName | Spiral Flute Taps |
| Thread Tolerance Class (TCTR) | 6HX |
