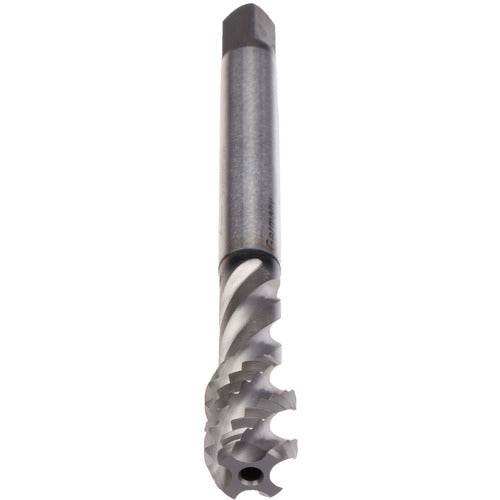

9/16-12-ENRMZ-BOT GLT1-3B
Item #: ER4599C4105014
Brand: EMUGE-FRANKEN
Model #: CU99C410.5014
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 9/16″ |
| Thread Tolerance Class (TCTR) | 3B |
| Threads per Inch (TPI) | 12 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Enorm Z/E |
| Overall Length (OAL) | 4.331″ |
| Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Coating | GLT-1 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Type | Spiral |
| Applicable Material | Stainless Steel |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Coolant Supply Property (CSP) | Coolant Thru |
