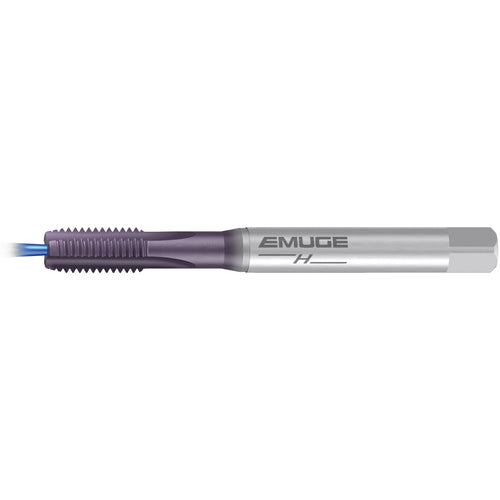

7/8-9-TAP-REK A-H-TICN
Item #: ER459591015017
Brand: EMUGE-FRANKEN
Model #: CU959101.5017
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Thread Tolerance Class (TCTR) | 2BX |
| Threads per Inch (TPI) | 9 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Rekord A-H |
| Overall Length (OAL) | 5.512″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Coating | TiCN |
| Flute Helix Angle (FHA) | 0 Degrees |
| Flute Type | Straight |
| Applicable Material | Cast Iron | Hard Materials |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Coolant Supply Property (CSP) | Coolant Thru |
