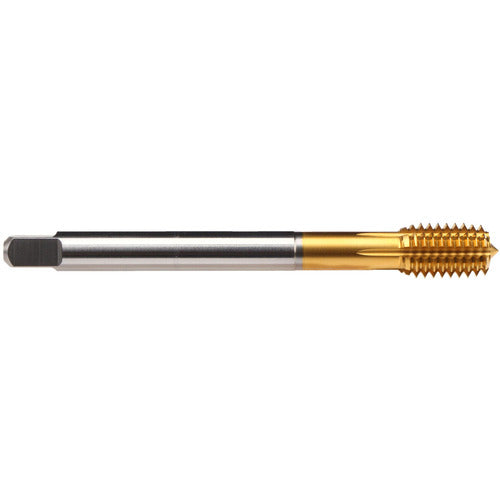

M14X1.5-FORM-Z-PM-TIN-80
Item #: ER45521Z7000331
Brand: EMUGE-FRANKEN
Model #: C521Z700.0331
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M14 |
| Applicable Material | Steel |
| Thread Pitch (TP) | 1.5 mm |
| Coating | TiN |
| Overall Length (OAL) | 100 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 11 mm |
| Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN |
| Cutting Direction (HAND) | Right Hand |
