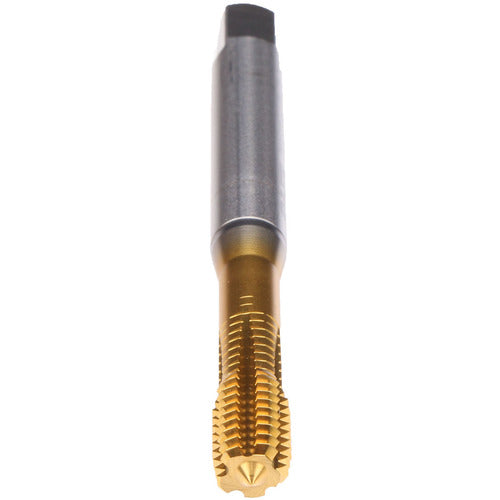

M4-INNOFORM-Z-SN-PM-TIN80
Item #: ER45521Z7000040
Brand: EMUGE-FRANKEN
Model #: B521Z700.0040
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Steel |
| Thread Diameter Size (TDZ) | M4 |
| Coating | TiN |
| Thread Pitch (TP) | 0.7 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 63 mm |
| Chamfer | 2P-3P |
| Usable Length (LU) | 21 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Cutting Edge Material | HSSE-PM |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN |
| Series/List # | 521Z700 |
| Thread Standard | Metric |
| Thread Size | M4 × 0.7 |
