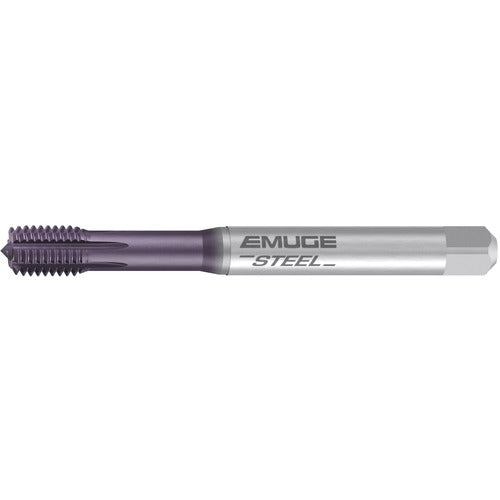

M10X1.5-TAP-INNOFORM-TICN
Item #: ER455216F000100
Brand: EMUGE-FRANKEN
Model #: B5216F00.0100
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Applicable Material | Steel |
| Thread Diameter Size (TDZ) | M10 |
| Coating | TiCN |
| Thread Pitch (TP) | 1.5 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 100 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Direction (HAND) | Right Hand |
| Tap Standard | DIN |
| Thread Size | M10 × 1.5 |
| Thread Standard | Metric |
