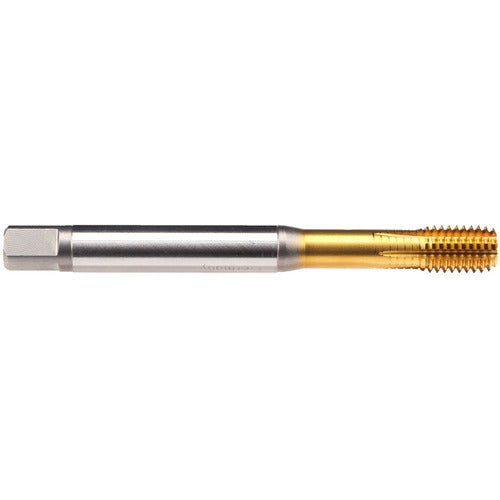

5/16-18-FORMZ-TIN-CLN-BOT
Item #: ER4544Z7005010
Brand: EMUGE-FRANKEN
Model #: BU44Z700.5010
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Universal Materials |
| Thread Diameter Size (TDZ) | 5/16″ |
| Coating | TiN |
| Overall Length (OAL) | 3.543″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Threads per Inch (TPI) | 18 |
| Thread Tolerance Class (TCTR) | 2BX |
| Chamfer | 1.5P-2P |
| Tap Standard | DIN | ANSI |
| Cutting Edge Material | HSSE-PM |
| Thread Standard | UNC |
| Cutting Direction (HAND) | Right Hand |
