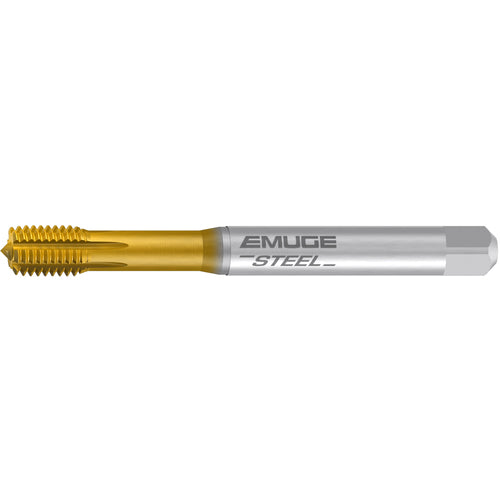

3/8-16-FORM STL-M-PM-TIN
Item #: ER45377F005011
Brand: EMUGE-FRANKEN
Model #: BU377F00.5011
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Applicable Material | Hard Materials |
| Thread Diameter Size (TDZ) | 3/8″ |
| Coating | TiN |
| Overall Length (OAL) | 3.937″ |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Threads per Inch (TPI) | 16 |
| Thread Tolerance Class (TCTR) | 2BX |
| Chamfer | 2P-3P |
| Tap Standard | DIN | ANSI |
| Cutting Edge Material | HSSE-PM |
| Thread Standard | UNC |
| Cutting Direction (HAND) | Right Hand |
