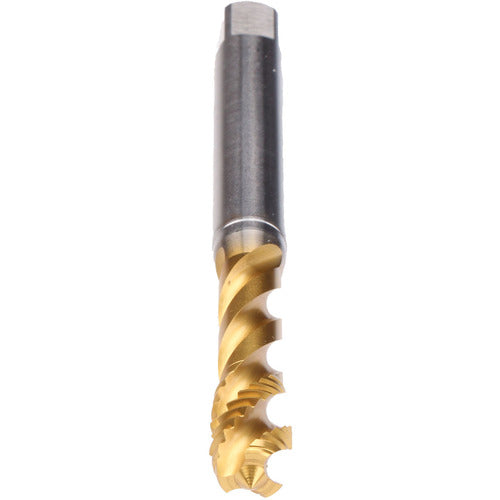

M6-TAP-ENORM ZSPEED-TIN60
Item #: ER453600F010060
Brand: EMUGE-FRANKEN
Model #: B3600F01.0060
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M6 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 1 mm |
| Standard | DIN |
| Thread Standard | Metric |
| Tool Type | Enorm |
| Overall Length (OAL) | 80 mm |
| Chamfer | 2P-3P |
| Usable Length (LU) | 30 mm |
| Coating | TiN-60 |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Flute Type | Spiral |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 45 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Metric |
| Cutting Edge Material | HSS-E PM |
